Build with confidence and stay ahead of schedule. We create intelligent 3D models that give you complete project visibility before breaking ground-eliminating costly surprises and keeping your timeline on track.

Our precise BIM modeling catches conflicts in the design phase, not during construction, significantly reducing rework and cutting project costs. You’ll accelerate approvals, streamline coordination across all trades, and ensure everystakeholder works from accurate, real-time data.

From early concept exploration (LOD 100) through construction-ready documentation (LOD 400) to final as-built records (LOD 500), we deliver the exact level of detail you need at each project stage. This means faster decision-making,optimized resource allocation, and seamless handoff to facility management-all while minimizing delays and preventing budget overruns.

Whether you’re developing commercial buildings, residential complexes, or industrial facilities, our expertise transforms your vision into data-rich models that keep projects on schedule and within budget. Partner with us to maximize your ROI through precision, collaboration, and confidence at every stage of the build.

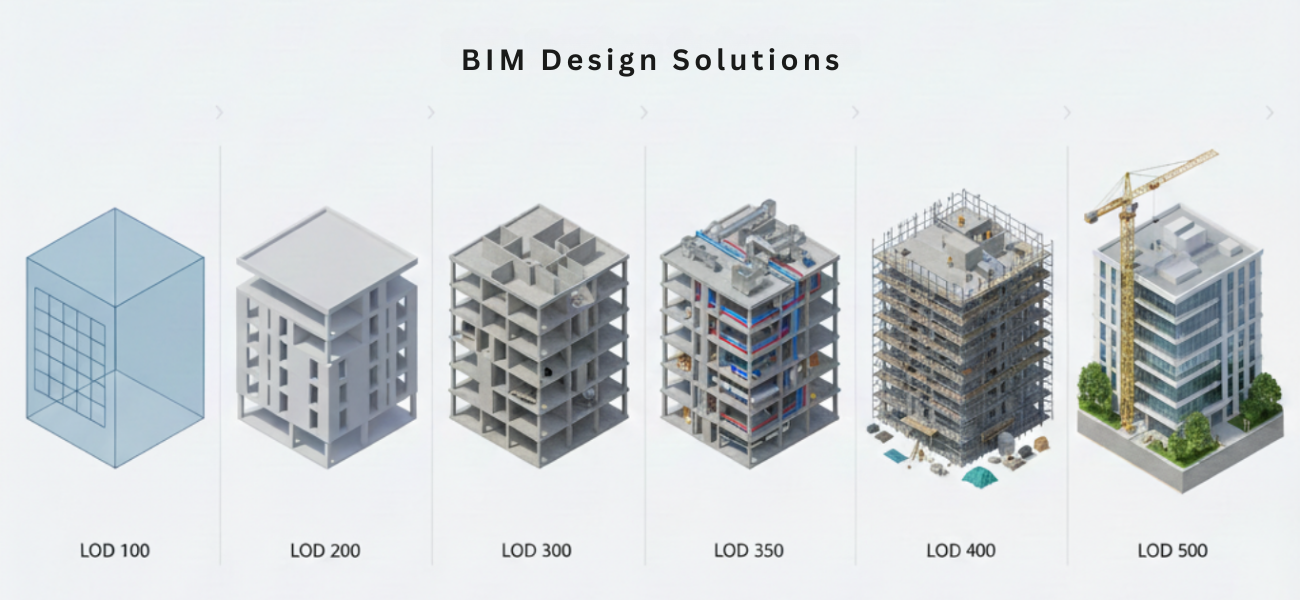

Our key deliverables include:

LOD 100 – Concept & Design Initiation

Transform your initial vision into a tangible digital asset. At this foundational stage, we create a conceptual 3D model that establishes the project's geometry, scale, and spatial relationships. This provides a clear, high-level overview that empowers early-stage decision-making and aligns all stakeholders from day one.
Read More

Transform your initial vision into a tangible digital asset. At this foundational stage, we create a conceptual 3D model that establishes the project’s geometry, scale, and spatial relationships. This provides a clear, high-level overview that empowers early-stage decision-making and aligns all stakeholders from day one.

What’s Included in LOD 100 Deliverables.

Conceptual 3D Model
We create a volumetric model illustrating the basic massing, height, orientation, and spatial organization of theproject – helping stakeholders visualize the concept before details are defined.


Site Plan & Context Layout
A high-level site layout shows the building footprint, access points, landscape zones, and surrounding context to support zoning, planning, and site feasibility reviews.


Preliminary Floor Plans & Stacking Diagrams
We provide schematic floor layouts and vertical stacking diagrams that outline program distribution, circulation concepts, and functional zoning across levels.


Massing Elevations & Section
Early elevation and sectional views communicate the building’s proportions, height, and exterior form, essential for early design evaluation and approvals.


Area & Volume Studies
Our reports include approximate floor areas, volumes, occupancy loads, and capacity data, supporting feasibility studies, early budgeting, and cost modeling.

Code & Zoning Review
We perform initial checks against zoning, setback, FAR, and occupancy requirements to ensure your concept aligns with regulatory constraints from the start.

Preliminary Cost & Schedule
Early ROM cost estimates and milestone schedules help owners and GCs align budgets and timelines before advancing into detailed design.

Concept Renderings
High-impact visualizations and renderings bring the concept to life – ideal for stakeholder presentations, investor pitches, or planning submissions.

LOD 200 – Schematic Development

We advance the conceptual model into a schematic design with greater detail. This model includes generalized systems, objects, and assemblies with approximate quantities, sizes, and locations. It serves as the primary tool for coordinating efforts across architectural, structural, and MEP disciplines.
Read More

We advance the conceptual model into a schematic design with greater detail. This model includes generalized systems,objects, and assemblies with approximate quantities, sizes, and locations. It serves as the primary tool for coordinatingefforts across architectural, structural, and MEP disciplines.

What’s Included in LOD 200 Deliverables.

Schematic 3D Model
We develop a detailed conceptual model where major building elements – walls, floors, structural members,MEP systems, and architectural features – are represented with approximate geometry, size, and location. This helps visualize how all major systems will integrate within the space.

Updated Site Plan & Building Layout
Our team refines the site model with access points, landscape zones, parking areas, and utility connections, showing how the building interfaces with its environment and complies with zoning constraints.

Floor Plans, Elevations & Sections (Schematic)
We deliver more defined architectural drawings with preliminary room layouts, circulation paths, façade concepts, and sectional studies – providing clarity on spatial relationships and user flow.

Structural System Definition
Preliminary columns, beams, slabs, and foundation elements are modeled with approximate dimensions and placement. This gives early insight into the structural framework and load-bearing strategy.

MEP System Modeling
We represent HVAC equipment, duct routes, piping networks, and electrical systems as schematic components with indicative sizes and capacities – helping anticipate coordination challenges early in design.

Quantities & Preliminary Cost Data
With more defined geometry, we provide refined quantity take-offs and updated cost estimates. These support budgeting, procurement planning, and value-engineering decisions.

Early Clash Detection & Coordination
The model enables interdisciplinary coordination, allowing architects, engineers, and contractors to identify and resolve major spatial conflicts before detailed design begins.

Updated Milestone Schedule
We deliver an updated project timeline aligned with schematic design progress, procurement strategies, and pre-construction planning milestones.

LOD 300 – Design Documentation & Detailed Coordination

This is where your design becomes construction ready. We develop a highly accurate and specific model where elements are defined with precise quantities, sizes, shapes, and locations. This detailed model is used for generating reliable construction documentation and performing advanced clash detection.
Read More

This is where your design becomes construction ready. We develop a highly accurate and specific model where elements are defined with precise quantities, sizes, shapes, and locations. This detailed model is used for generating reliable construction documentation and performing advanced clash detection.

What’s Included in LOD 300 Deliverables.

Accurate 3D BIM Model
We deliver a fully coordinated model with precise dimensions, shapes, and locations for all architectural, structural, and MEP elements. Components now match their real-world size, orientation, and relationships – ready to inform shop drawings and construction planning.

Detailed Architectural Drawings
At this level, we provide fully developed floor plans, elevations, sections, and detail drawings. Room layouts, façade elements, openings, finishes, and interior systems are all modeled with exact specifications, ensuring that every aspect of the design is constructible and code compliant.

Structural Design Documentation
The structural model now includes accurate framing layouts, beam and column sizes, reinforcement details, slab thicknesses, and connection points. These deliverables enable structural engineers and contractors to prepare shop drawings and plan construction with confidence.

MEP Coordination Model
Mechanical, electrical, plumbing, and fire-protection systems are modeled with realistic routing, sizing, and placement. This enables precise clash detection and ensures that all systems fit and function as intended within the architectural and structural framework.

Coordinated Schedules & Quantity Take-Offs
With element-level detail, we generate high-accuracy material schedules, BOQs (Bills of Quantities), and quantity take-offs directly from the BIM model. These outputs support procurement, bidding, and cost control with minimal manual rework.

Construction Coordination & Clash Resolution
LOD 300 enables multi-discipline model coordination, resolving interferences between architectural, structural, and MEP systems before construction starts. Early detection significantly reduces site-level changes, delays, and rework.

Construction Documentation Package
We compile a comprehensive drawing set – including annotated plans, details, sections, schedules, and 3D views to guide field teams, subcontractors, and fabricators during execution.

LOD 350 – Fabrication & Installation Coordination

We bridge the gap between digital design and physical construction. This level of detail provides fabrication-ready precision, defining components, connections, and installation instructions. The model ensures that every element is manufactured and assembled correctly, streamlining on-site workflows.
Read More

We bridge the gap between digital design and physical construction. This level of detail provides fabrication-ready precision, defining components, connections, and installation instructions. The model ensures that every element is manufactured and assembled correctly, streamlining on-site workflows.

What’s Included in LOD 350 Deliverables.

Highly Detailed 3D BIM Model
We refine the model with accurate interfaces, joint conditions, anchors, embeds, sleeves, penetrations, and clearances. Each element is shown in its true construction-ready context – including how it connects to or interacts with surrounding systems.

Architectural Detailing & Coordination
Architectural elements such as façades, partitions, curtain walls, ceilings, and finish transitions are detailed to include connection details, installation interfaces, and fixture coordination. This ensures that final field conditions align perfectly with design intent and installation realities.

Structural Connection Modeling
Structural components now include detailed connection geometry, such as base plates, gussets, anchor bolts, weld joints, and bracing interfaces. This level of detail supports fabrication drawings and ensures coordination between steel, concrete, and architectural assemblies.

MEP System Integration & Penetration Detailing
We model all equipment interfaces, hangers, supports, penetrations, sleeves, and access zones for HVAC, piping, electrical, and fire systems. This ensures there are no clashes during installation and that all systems maintain required clearances and serviceability.

Coordination Drawings & Shop-Level References
Deliverables include coordination drawings and 3D views that illustrate how architectural, structural, and MEP systems integrate at a granular level. These outputs serve as pre-fabrication references for trade contractors and field teams, reducing installation errors.

Advanced Clash Detection & Resolution
At LOD 350, clash detection evolves beyond simple conflicts – it identifies interface-level issues, installation constraints, and maintenance access conflicts. Early resolution of these issues minimizes costly change orders and delays in the field.

Prefabrication & Installation Support Package
We deliver a detailed model package with installation-ready details, coordination sheets, interface diagrams, and annotated drawings to guide trade contractors during prefabrication, staging, and on-site assembly.

LOD 400 – Construction Execution & Management

Bring your project schedule and budget to life within the BIM environment. At this stage, we integrate 4D (time) and 5D (cost) data into the model, transforming it into a powerful tool for construction management, sequencing, and real-time progress tracking.
Read More

Bring your project schedule and budget to life within the BIM environment. At this stage, we integrate 4D (time) and 5D (cost) data into the model, transforming it into a powerful tool for construction management, sequencing, and real-time progress tracking.

What’s Included in LOD 400 Deliverables.

Fabrication-Ready 3D Model
We create a high-detail BIM model that includes every dimension, connection, fastener, joint, weld, and component as it will exist in the field. All elements are represented with precise geometry, orientation, and tolerances, enabling direct use in fabrication and assembly processes.

Shop Drawings & Fabrication Documentation
Our deliverables include comprehensive shop drawings, fabrication sheets, and assembly manuals generated directly from the model. These documents provide exact dimensions, material specifications, and installation instructions – ensuring flawless handover to manufacturers and field teams.

Structural & System Fabrication Details
Structural components (beams, columns, bracing, plates) and MEP systems (ductwork, piping, conduits) are modeled with full fabrication details – including weld types, bolt patterns, cut lengths, spool drawings, and assembly sequencing. This eliminates guesswork during manufacturing and reduces field adjustments.

Prefabrication & Modular Assembly Coordination
We integrate prefabrication-ready assemblies into the model, allowing contractors to plan and execute off-site manufacturing and modular construction. This improves quality control, reduces site labor, and accelerates project schedules.

Procurement & Material Tracking Data
The model includes material specifications, quantities, and procurement data linked directly to model elements.This enables procurement teams to automate material tracking, inventory planning, and logistics scheduling based on real-time model intelligence.

Fabrication-Level Clash Detection
At LOD 400, we perform high-resolution clash detection that identifies even minor tolerances or connection conflicts. This ensures zero surprises during fabrication and installation, saving significant time and cost on-site.

LOD 500 – As-Built Records & Facility Management

We deliver a comprehensive as-built model that serves as a complete digital twin of the finished asset. This data-rich model is verified in the field and contains all information necessary for facility management, maintenance, and future renovations, maximizing the building’s long-term operational value.
Read More

We deliver a comprehensive as-built model that serves as a complete digital twin of the finished asset. This data-rich model is verified in the field and contains all information necessary for facility management, maintenance, and future renovations, maximizing the building’s long-term operational value.

What’s Included in LOD 500 Deliverables.

As-Built BIM Model
We deliver a comprehensive, field-verified BIM model that accurately represents the final installed condition of all architectural, structural, MEP, and infrastructure components. Every dimension, location, orientation, and system detail match the real-world installation – ensuring complete alignment between the digital and physical assets.

Final Documentation & Record Drawings
The as-built model is accompanied by record drawings and documentation that reflect all changes made during construction. These include updated floor plans, sections, elevations, connection details, and mechanical schematics – forming a complete, permanent record for the owner.

Equipment & Asset Data Integration
Each modeled element is enriched with asset-level metadata – such as manufacturer details, serial numbers, installation dates, warranty data, maintenance schedules, and performance specifications. This enables seamless integration with CMMS (Computerized Maintenance Management Systems) and facility management software.

Facility Management & Operations Model
We transform the BIM model into a facilities-ready digital twin, providing owners and operators with detailed information to manage maintenance, inspections, energy performance, and lifecycle planning. This data-centric approach reduces operating costs and improves asset reliability.

Space & System Validation Reports
Our team provides as-built validation reports comparing installed conditions against design intent, ensuring that every element meets project specifications. This documentation supports handover, warranty claims, and long-term facility audits.

LOD 500 – As-Built Records & Facility Management

We deliver a comprehensive as-built model that serves as a complete digital twin of the finished asset. This

LOD 400 – Construction Execution & Management

Bring your project schedule and budget to life within the BIM environment. At this stage, we integrate 4D

LOD 350 – Fabrication & Installation Coordination

We bridge the gap between digital design and physical construction. This level of detail provides fabrication-ready precision, defining

LOD 300 – Design Documentation & Detailed Coordination

This is where your design becomes construction ready. We develop a highly accurate and specific model where elements

LOD 200 – Schematic Development

We advance the conceptual model into a schematic design with greater detail. This model includes generalized systems, objects,

LOD 100 – Concept & Design Initiation

Transform your initial vision into a tangible digital asset. At this foundational stage, we create a conceptual 3D

Comprehensive Drawing Packages

Our deliverables include a full set of engineering drawings to guide the construction process:
  • General Arrangement (GA) Drawings: These provide an overview of the entire structure, showing the location and arrangement of major structural elements.
  • Detail Drawings: These offer specific instructions for the fabrication and erection of individual components,ensuring accuracy during construction.
